Abstract

In this work, we demonstrate robust walking in the bipedal robot Digit on uneven terrains by just learning a single linear policy. In particular, we propose a new control pipeline, wherein the high-level trajectory modulator shapes the end-foot ellipsoidal trajectories, and the low-level gait controller regulates the torso and ankle orientation.The foot-trajectory modulator uses a linear policy and the regulator uses a linear PD control law. As opposed to neural network based policies, the proposed linear policy has only 13 learnable parameters, thereby not only guaranteeing sample efficient learning but also enabling simplicity and interpretability of the policy. This is achieved with no loss of performance on challenging terrains like slopes, stairs and outdoor landscapes.We first demonstrate robust walking in the custom simulation environment, MuJoCo, and then directly transfer to hardware with no modification of the control pipeline. We subject the biped to a series of pushes and terrain height changes, both indoors and outdoors, thereby validating the presented work.

incline

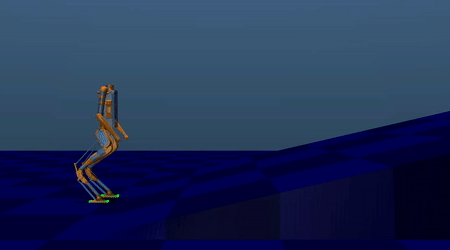

Slope: Incline
decline

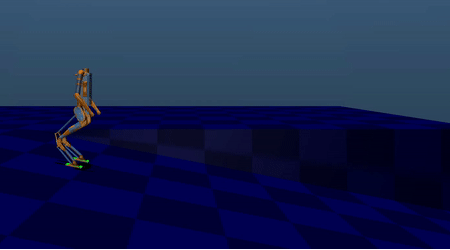

Slope: Decline
vslope

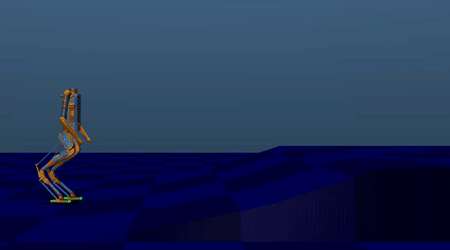

Variying Slope
sine

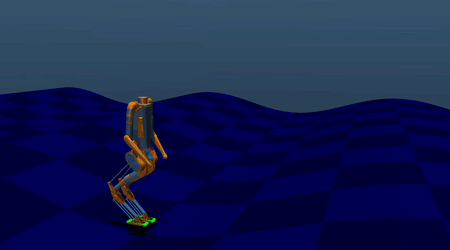

Sinusoidal Terrain
spike

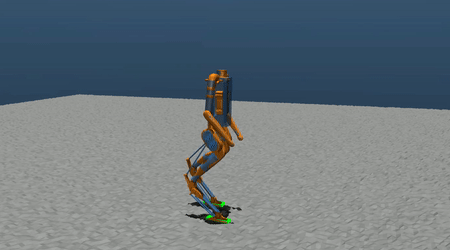

Undulated-Spiky Terrain
steps

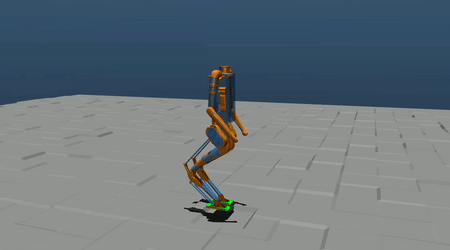

Undulated-Step Terrain
stairs

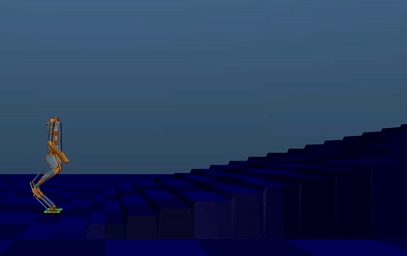

Staircase
omni

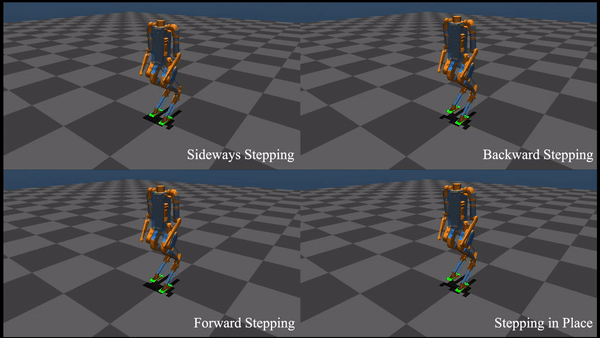

Omni-Driectional Walking
omni

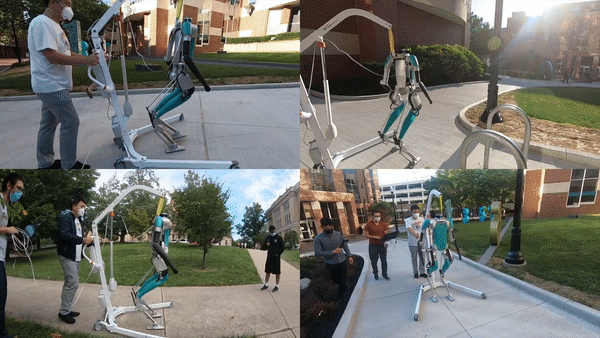

Unstructured Outdoors
omni

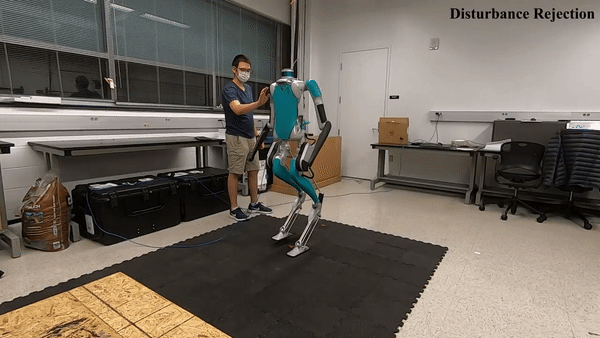

Push Recovery
omni

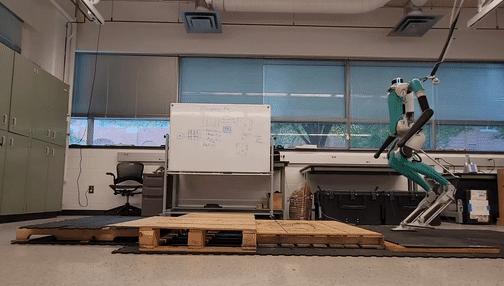

Hardware - Stairs
omni
Hardware - Command Control


Control Framework

drawing


Video




Citations

    @misc{krishna2021learning,
          title={Learning Linear Policies for Robust Bipedal Locomotion on Terrains with Varying Slopes},
          author={Lokesh Krishna and Utkarsh A. Mishra and Guillermo A. Castillo and Ayonga Hereid and Shishir Kolathaya},
          year={2021},
          eprint={2104.01662},
          archivePrefix={arXiv},
          primaryClass={cs.RO}
        }
    @misc{krishna2021linear,
          title={Linear Policies are Sufficient to Realize Robust Bipedal Walking on Challenging Terrains},
          author={Lokesh Krishna and Guillermo A. Castillo and Utkarsh A. Mishra and Ayonga Hereid and Shishir Kolathaya},
          year={2021},
          eprint={2109.12665},
          archivePrefix={arXiv},
          primaryClass={cs.RO}
        }



Related Papers

2021
September
PDF Learning Linear Policies for Robust Bipedal Locomotionon Terrains with Varying Slopes
Lokesh Krishna, Utkarsh A Mishra, Guillermo A. Castillo, Ayonga Hereid, and Shishir Kolathaya
IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) 2021 Prague, Czech Republic.
2022
January
PDF Linear Policies are Sufficient to Realize Robust Bipedal Walking on Challenging Terrains
Lokesh Krishna, Guillermo A. Castillo, Utkarsh A Mishra, Ayonga Hereid, and Shishir Kolathaya
RA-Letters & IEEE International Conference on Robotics and Automation (ICRA) 2022, Philadelphia, USA
2022
July
PDF Realising the role of arms on improving the stability bipedal robots
Manan Tayal, and Shishir Kolathaya
6th Cyber Physical Symposium (CyPhySS) 2022, Bangalore, India
2023
October
PDF MELP: Model Embedded Linear Policies for Robust Bipedal Hopping
Raghav Soni, Guillermo A. Castillo, Lokesh Krishna, Ayonga Hereid, and Shishir Kolathaya
IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) 2023, Detroit, USA
